The Aarrow Acorn View 5 Multi-fuel and Wood-burning Stove

The Aarrow Acorn View 5 Multi-fuel and Wood-burning Stove is small but perfectly formed, designed for cosy living rooms, houseboats and for secondary heating requirements.

Although the Aarrow Acorn View woodburning and multifuel stove is compact in size,it boasts all the features you would expect from an Aarrow stove. (Click on the images to enlarge.)

Offering an easily controllable heat supply, the Acorn stove is sturdy, efficient and simple to operate. Ideal for burning wood or solid fuel - don't be fooled by its size

The Aarrow Acorn View 5 is the direct replacement for the discontinued Aarrow Acorn 5 and now has a larger viewing window and a more modern looking door.

The New Acorn View 5 incorporates Aarrows new Flexifuel grate system with allows you to change between solid fuel and logs a lot easier than the previous grate system.

Additional ventilation to the room is not require

Heat Output 5Kw

Secondary burn for higher efficiency

Airwash system for cleaner glass

Lifetime guarantee on stove body

Externally controlled multi-fuel riddling grate

Suitable for installation on a 12mm hearth

Optional 5400Btu stainless steel boiler

Optional floor fixing kit

This stove is supplied with a FREE installation kit and Fire Starter Kit saving you up to £100



Flue Types:

This product is compatible with the following flue types:

  • Brick Chimney Flue C1

Read more about Flue Types.

Call us now on 0113 2555622 for more information

CLICK HERE for a FREE Home Survey

£0inc. VAT

Technical Specification & Dimensions:

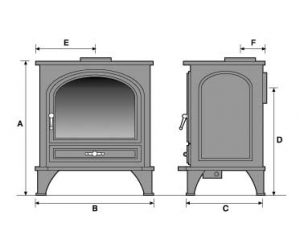

Stove dimensions

A 485mm  B 370mm  C 360mm

 Heat Output : 5.0KW

 Efficiency : 77.56%

 Flue Size : 4" (100mm)

 Fuel Type : Solid Fuel and Wood

 Flue Options : Top and Rear

Approx Weight : 47Kg

Warranty : Lifetime on Stove Body. Excludes items that are classed as replaceable under normal use such as glass, rope seal, fire bricks

 Optional 5400Btu stainless steel boiler

 Airwash : Yes

Airvent required : No

Distance to Center Of Top Flue: 93.5mm

Distance to Center Of Rear Flue: 372mm

Distance to Combustible Materials: (Plasterboard, Wood etc)

Rear: 650mm

Sides: 500mm

Distance to NON - Combustible Materials: (Brick or stone walls etc)

Rear: 50mm

Sides: 150mm
